Discontinued

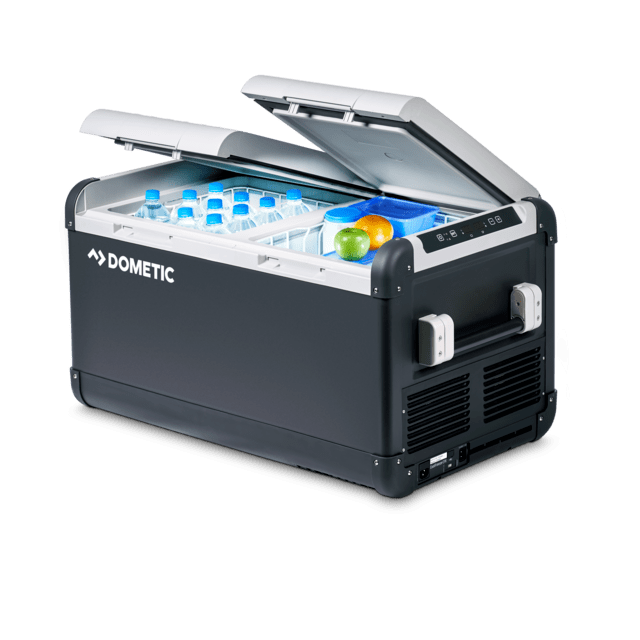

Dometic CoolFreeze CFX 75DZW

Mobile compressor dual-zone cooler and freezer, 70 l

A powerful and uncompromising compressor cooler with special CFX electronics and two separate temperature zones. Energy-saving and quiet operation.

Art nr: 9600001413

Product Highlights

USB port
1 of 6

USB port

USB port for charging small electronic devices

WiFi-App
2 of 6

WiFi-App

Temperature control via WiFi-App

Robust
3 of 6

Robust

Heavy-duty design with reinforced corners and a robust closing mechanism

Efficient deep-freezing
4 of 6

Efficient deep-freezing

Sensational deep-freeze performance down to –7 °F with minimal energy consumption

LED light
5 of 6

LED light

Energy efficient LED interior light

Easy to carry
6 of 6

Easy to carry

Space-saving folding and detachable carrying handles

Storage volume: 70 l (43 l and 27 l)

Two temperature zones make simultaneous cooling and freezing possible

Suitable for deep-freezing down to –22 °C

Very efficient and quiet operation. Suitable for solar operation

Heavy-duty design with reinforced corners, stainless steel hinges and robust lid coating

CFX special electronics with digital temperature display

Temperature control via WiFi app

SKU number

9600001413

Model

CFX75DZW

Model on label

CFX75DZW

SKU replaced by

9600025333

Scope of delivery

1 cooler, 1 manual, 1 DC cable, 1 AC cable

Single or Dual Zone

Dual

Product Description

Mobile compressor dual-zone cooler and freezer, 70 l

Refrigeration technology

Compressor

Dimensions product depth, [mm]

495

Dimensions product height, [mm]

472

Dimensions product width, [mm]

887

Net weight, [kg]

31.01

Total volume (IEC 62552-3), [l]

75

Input voltage (AC), [V]

100-240

Input voltage (DC), [V]

12/24

Rated input current (AC), [A]

0.93A at 100V, 0.38A at 240V

Rated input current (DC), [A]

7.9

Rated input power (AC), [W]

70

Rated input power (DC), [W]

70

Input frequency, [Hz]

50/60

Hermetically Sealed

True

Refrigerant, type

R134a

-

Contains fluorinated greenhouse gases

GWP

1430

Refrigerant amount, [g]

57

CO2 equivalent, [t]

0,082

Energy consumption (DC@5/25°C), [kWh/24h]

1.309

Climate class (EN62552)

N/T

Insulation Type

PU (Polyurethane)

Colour

Grey

USB Port

5V, 500 mA

Connectivity Type

WiFi

Basket

Yes

Threaded inserts in base for mounting

M6

Drain plug

Yes

Interior light

Yes, LED

Certificates

CBCEE4GS

EAN-13

4015704249941

Dimensions parcel depth, [mm]

522

Dimensions parcel height, [mm]

500

Dimensions parcel width, [mm]

915

Parcel weight, [kg]

37

Dometic CFX 75DZW, CFX 95DZW - Operating Manual EMEA16

Operating Manual

Download
Award-winning cooler and freezer

Award-winning cooler and freezer

The Dometic CFX series represents the next generation of portable coolers. Firstly, there’s the CFX Special Electronics which include an intelligent automatic turbo cooler and memory function to remember your preferred settings. Then not only is it suitable for deep freezing down to –22 °C but it can also operate on solar power. This premium compressor cooler provides superbly quiet, highly-efficient and powerful cooling performance, regardless of the ambient temperature. Its two separate compartments can be cooled independently to the temperature of your choice, allowing simultaneous cooling and freezing. There's even a USB charging port for charging small electrical devices. Comfortably take this amazing cooler and freezer wherever you go thanks to conveniently detachable carry handles. While heavy-duty details like reinforced corners, stainless steel hinges and a robust lid lining, mean Dometic's award-winning CFX series coolers will withstand the most demanding of loads. On top of all this, you can effortlessly monitor and control the cooling temperature by an app on your smartphone or tablet!

Simultaneous cooling and freezing

Simultaneous cooling and freezing

Do you want to store fresh produce or preferably frozen food? Actually this is not the question here. Dometic CFX DZ series coolers satisfy all your needs with their dual-zone refrigeration system. Even simultaneous cooling and freezing is possible. The larger CFX DZW models gives you two practical extra features. First, the temperature can be set and monitored with an easy-to-use WiFi app. Second, the two temperature zones have separate controls, so they can be precisely set as required. This fridge and freezer have unbeatable quality features, we know you will appreciate!

Where does the CFX get its immense power?

Where does the CFX get its immense power?

Compressor cooling technology, used in Dometic's CFX series, offers unrivalled cooling power. But how does it work? Well, it relies on a refrigerant that changes from a liquid to gaseous state in the evaporator. The evaporation process extracts heat from the interior of the cooling unit, causing the temperature to drop. The compressor draws in the refrigerant, compresses it and passes it on to the condenser. From here, the absorbed heat is released into the atmosphere. The refrigerant liquefies and flows back to the evaporator, where the cycle begins again. The result of this is an excellent cooling performance, capable of deep-freezing, even at extreme ambient temperatures.
