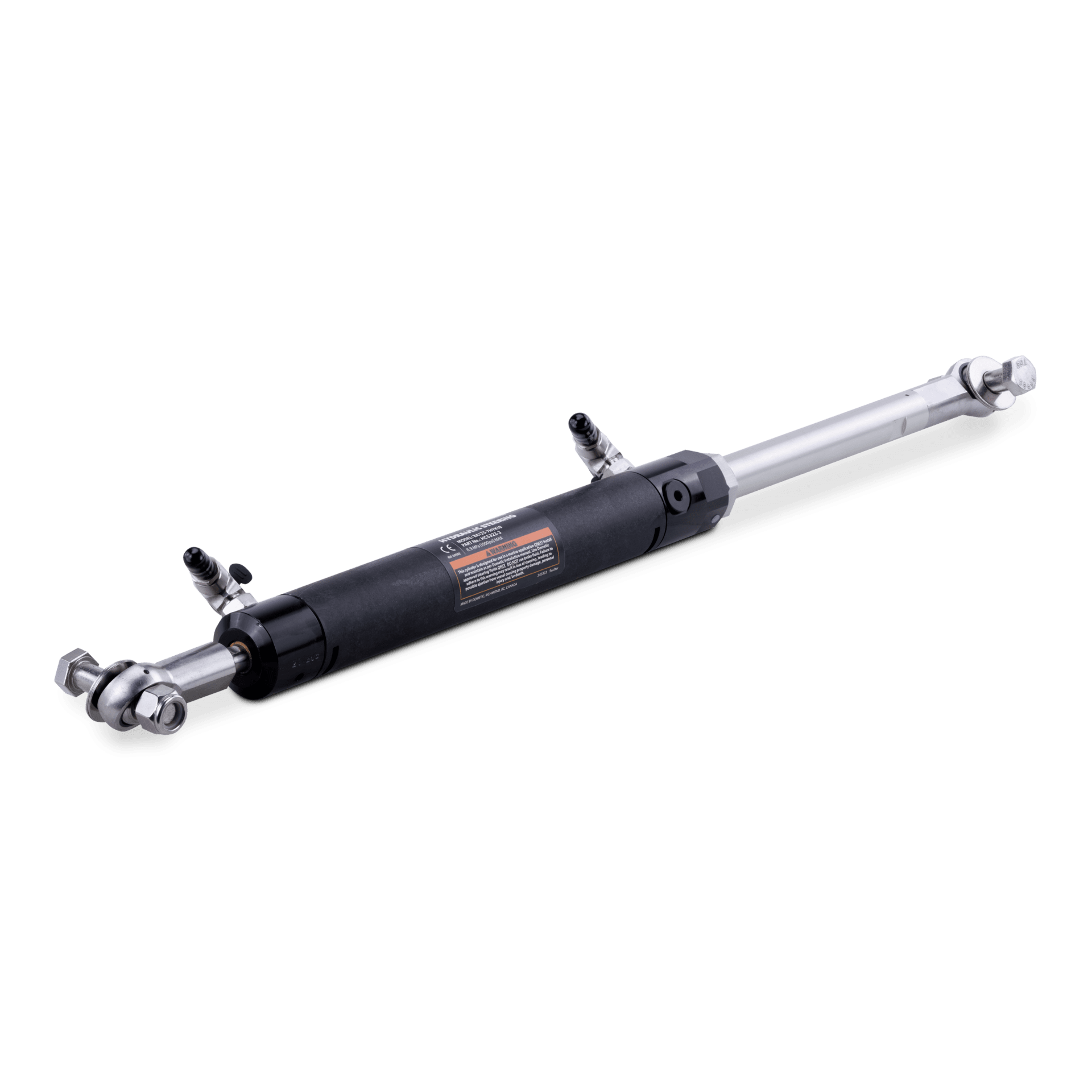

Dometic SeaStar Inboard Cylinder
Steering cylinder, BA150-3ATM, HC1503-3
Sold in our dealer networkArt nr: 9130000911 (HC1503-3)
Designed for use in jet drive steering applications, Dometic hydraulic steering cylinders are made of corrosion-resistant stainless steel and thread in to the cylinder via adjustable O-ring sealed ports. The seal designs in the end glands and pistons have been optimized for lower friction and longer life. 3" stroke.
Corrosion-resistant stainless steel
3" stroke
Designed for lower friction and longer life
SKU number
9130000911
Model
SeaStar Inboard Cylinder
Model on label
TBD
Legacy Factory Item Number
HC1503-3
Product Description
Steering cylinder, BA150-3ATM, HC1503-3
Dimensions product height, ["]
2 1/4
Dimensions product width, ["]
12 1/4
Net weight, [lbs]
4.60
Actuation Stroke Length, ["]
3
Maximum Pressure rating, [psi]
1000
Color
Black
Allowable Fluid Type
SeaStar steering fluid
Port Type
SAE
Shaft Diameter, ["]
0.63
Cylinder Type
Inboard
EAN-13
0
Dimensions parcel depth, ["]
21
Dimensions parcel height, ["]
3.44
Dimensions parcel width, ["]
5.13
Hydraulic Steering for Inboard and Sterndrive Powered Vessels - Installation and User Manual EN(US)
Installation and Operating Manual
