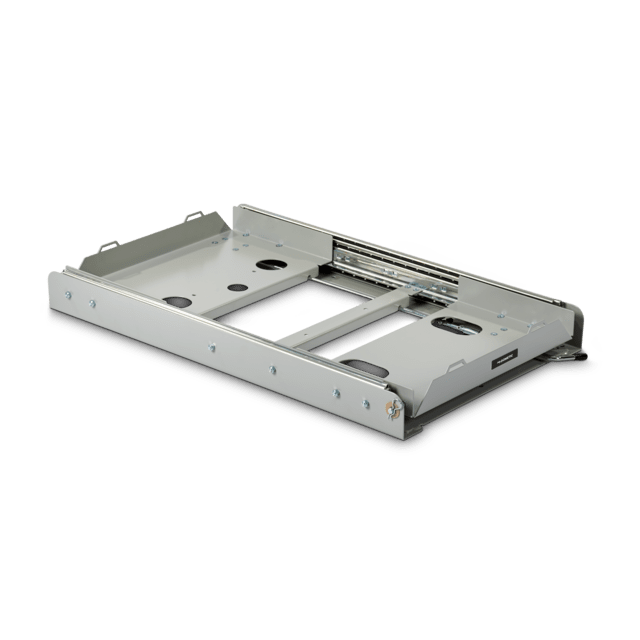

Dometic CFX Fridge Slide
Add slide out convenience to your fridge or freezer with one of our slides. Not only does it provide easy access for loading and unloading, it also keeps it secured.
Enables optimum access and secure storage.
Heavy-duty powder-coated steel construction for years of reliable use.
Ball bearing rollers ensure easy use when fully loaded - impressive 220lb load capacity.
Pre-drilled mounting holes match CFX mounting nutserts for easy installation.
Includes 4 tie down straps, 4 M6 mounting screws and washers.
RV basements are made with differences in lip and door dimensions. These differences may not accommodate the dimension required for proper installation. Please see product drawing below for measurements.
Extended: 1451 mm (including lever)
SKU number
9105306641
Model
CFX-SLD5065
Model on label
CFXSLD5065
Scope of delivery
Screw and washer x 4; strap x 4
Product Description
CFX 50&65 Model Slide
Dimensions product depth, ["]
31.14
Dimensions product height, ["]
3.11
Dimensions product width, ["]
20.98
Net weight, [lbs]
37.48
Color
Grey
EAN-13
0713814219055
Dimensions parcel depth, ["]
35.43
Dimensions parcel height, ["]
6.10
Dimensions parcel width, ["]
25.59
