Discontinued

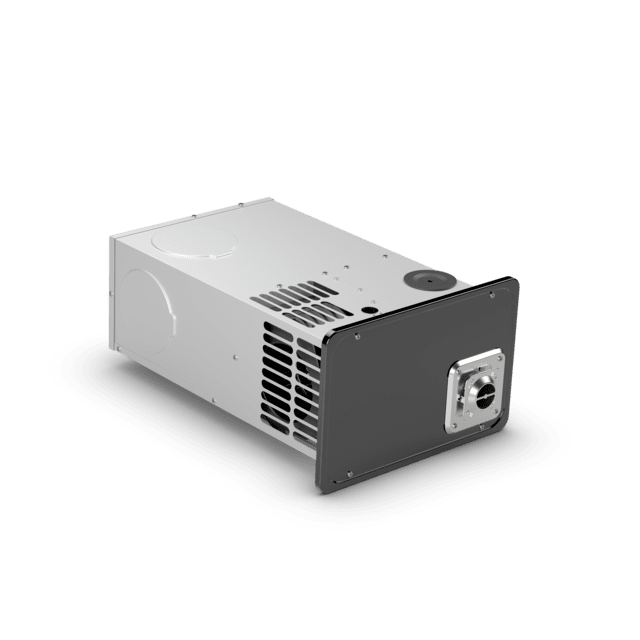

Dometic Mojave Small Furnace
Small Furnace (12K-20K) BTU
Sold in our dealer networkArt nr: 9600001146
Engineered for easy maintenance and superior air delivery. Its compact size offers installation convenience. The Dometic Mojave Small Furnace now comes with a durable stamped steel door that is built to last (select models only).
Horizontal or vertical configuration for flexible installation
Quiet operation thanks to reduced air turbulence
Low-profile, compact design: 7 in. x 12 in. x 20 in. (H x W x D)
12 V DC powered unit
12,000 BTU
SKU number
9600001146
Model
DFS
Model on label
DFSD12121, 38920
Scope of delivery
Furance, Duct Adaptors and Manual
Product Description
Door-less Furnace 12,000 BTU
Dimensions product depth, ["]
20
Dimensions product height, ["]
7
Dimensions product width, ["]
12
Net weight, [lbs]
20.8
Voltage Type
DC
Input voltage (DC), [V]
12
Rated input current (DC), [A]
3.4
Fuel type
Liquid gas LPG
Fuel consumption peak, [cf/h]
5 1/2
Certificates
ETL
Door Style
LD (Less Door)Rear Gas Manifold
Furnace Size
Small
EAN-13
0713814220723
Dimensions parcel depth, ["]
26
Dimensions parcel height, ["]
11 1/16
Dimensions parcel width, ["]
15 3/4
Parcel weight, [lbs]
20.8
