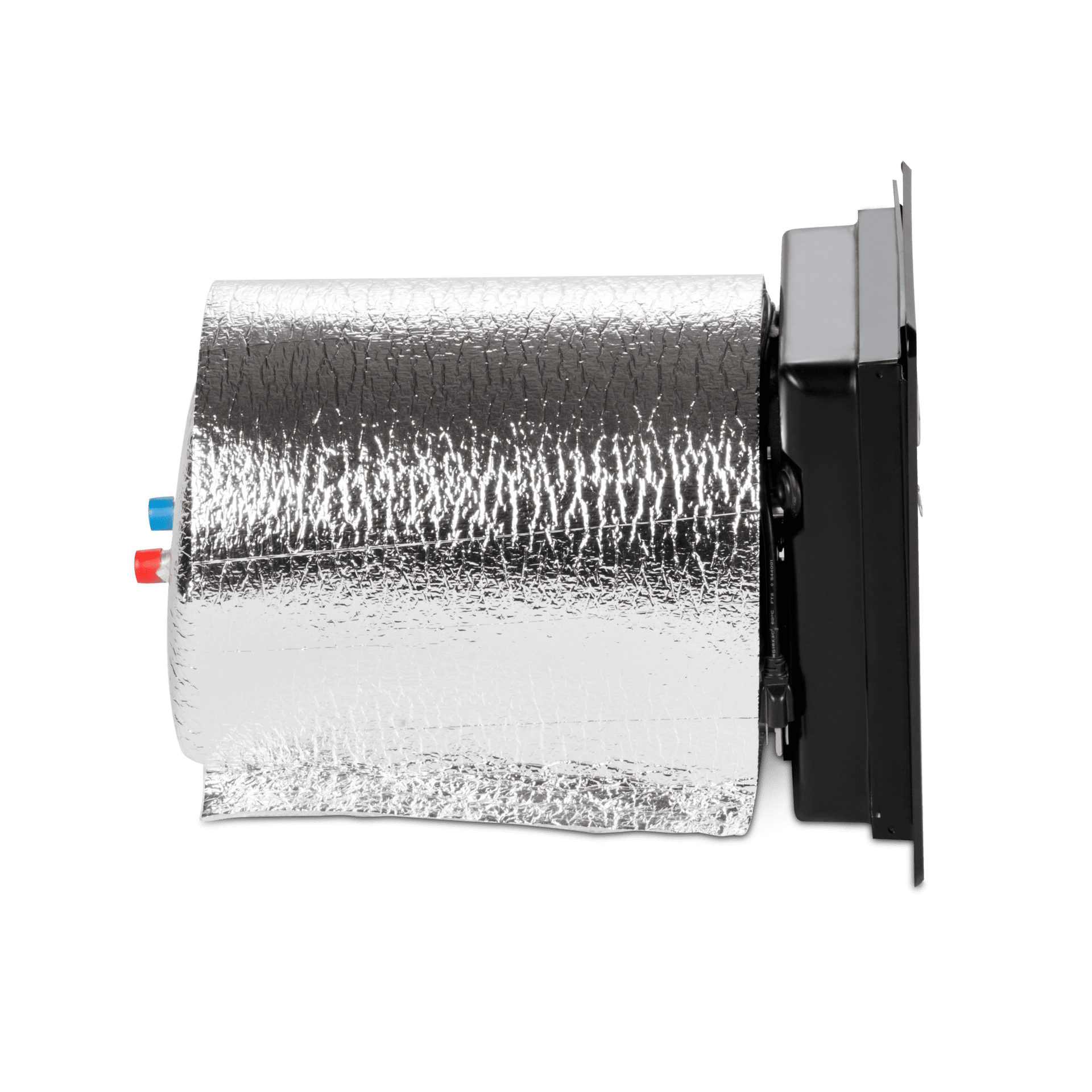

Dometic WH-9GEA XT 9 Gallon Water Heater
The Dometic WH-9GEA is a market-leading water heater for mobile applications. Its robust burner system generates hot water quicker and for longer to ensure a comfortable and convenient showering experience while you're away from home. Direct replacement for: 90074, 90073, 90074SU, 90072, 90071, 90072SU, 90068. Doors recommended: 94050 (Arctic White) 94010 (Black). If this installation is in place of an old water heater, and adaptor brackets are needed, we recommend 94016 (Arctic White) 94067 (black).
- Quick heating
- Low Maintenance
- Extra Heat
- Advanced Technology
10,000 BTU gas input
1400 W electric input
Aluminum tank is lightweight and corrosion resistant
Mixing valve provides 33 % more hot water than other 6 gal. water heaters
Electronic ignition gas burner system
Easy access low profile door
6 gal. cut-out: 12-3/4"H x 12-3/4"W x 20-7/8"D
SKU number
9600024380
Model
WH-9GEA
Model on label
WH-9GEA
Scope of delivery
Water Heater with Manual
Product Description
9 Gallon XT Water Heater (Gas & Electric), Door not Included
Heating Method
Gas & Electric
Dimensions product depth, ["]
23.5
Dimensions product height, ["]
12.62
Dimensions product width, ["]
12.62
Net weight, [lbs]
18
Tank Size, [Gal]
6
Cut out depth, ["]
24
Cut out height, ["]
12.88
Cut out width, ["]
12.88
Input voltage (DC), [V]
12
Rated input current (DC), [A]
1
Fuel type
Liquid gas LPG
Power consumption - Heating mode, [W]
1400
Fuel consumption peak, [cf/h]
3.5
Certificates
CSA
EAN-13
0713814271428
Dimensions parcel height, ["]
13 1/2
Dimensions parcel width, ["]
16
Parcel weight, [lbs]
20
Dometic 94842 (Water Heater Switch Assembly) - Installation Manual AMER(en)
Installation Manual
DownloadDometic WH-6GA, WH-6GEA, WH-9GEA - Installation and Operation Manual AMER(en-fr)
Installation and Operating Manual
DownloadDometic WH-6GA WH-6GEA WH-9GEA WH-10GEA WH-16GEA - Installation and Operating Manual AMER (en-fr)
Installation and Operating Manual
DownloadWARNINGCancer or Reproductive Harm www.P65Warnings.ca.gov
Product Highlights

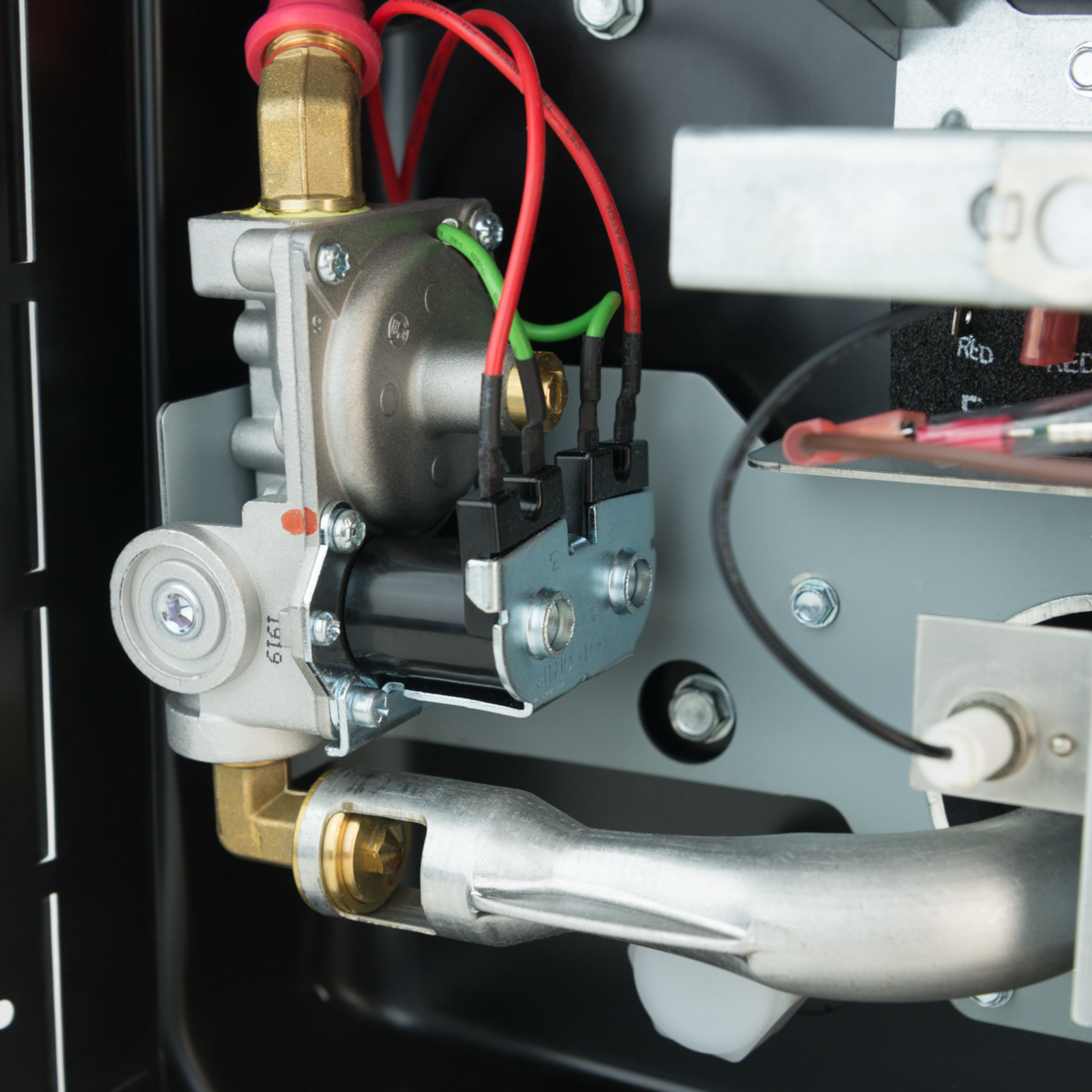

Quick heating
Burner system heats water quickly and reduces wait time

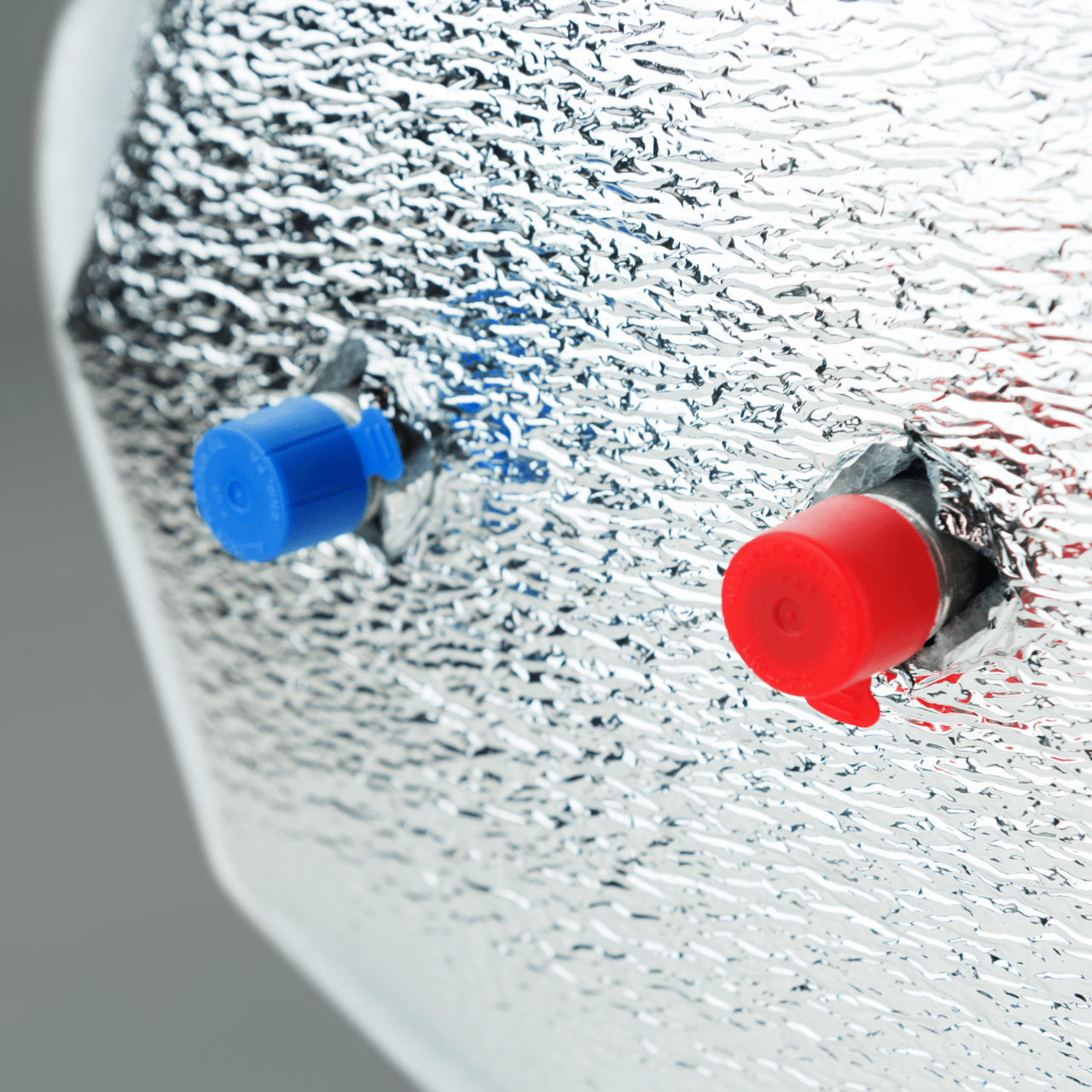

Low Maintenance
Aluminum tank requires no anode rod

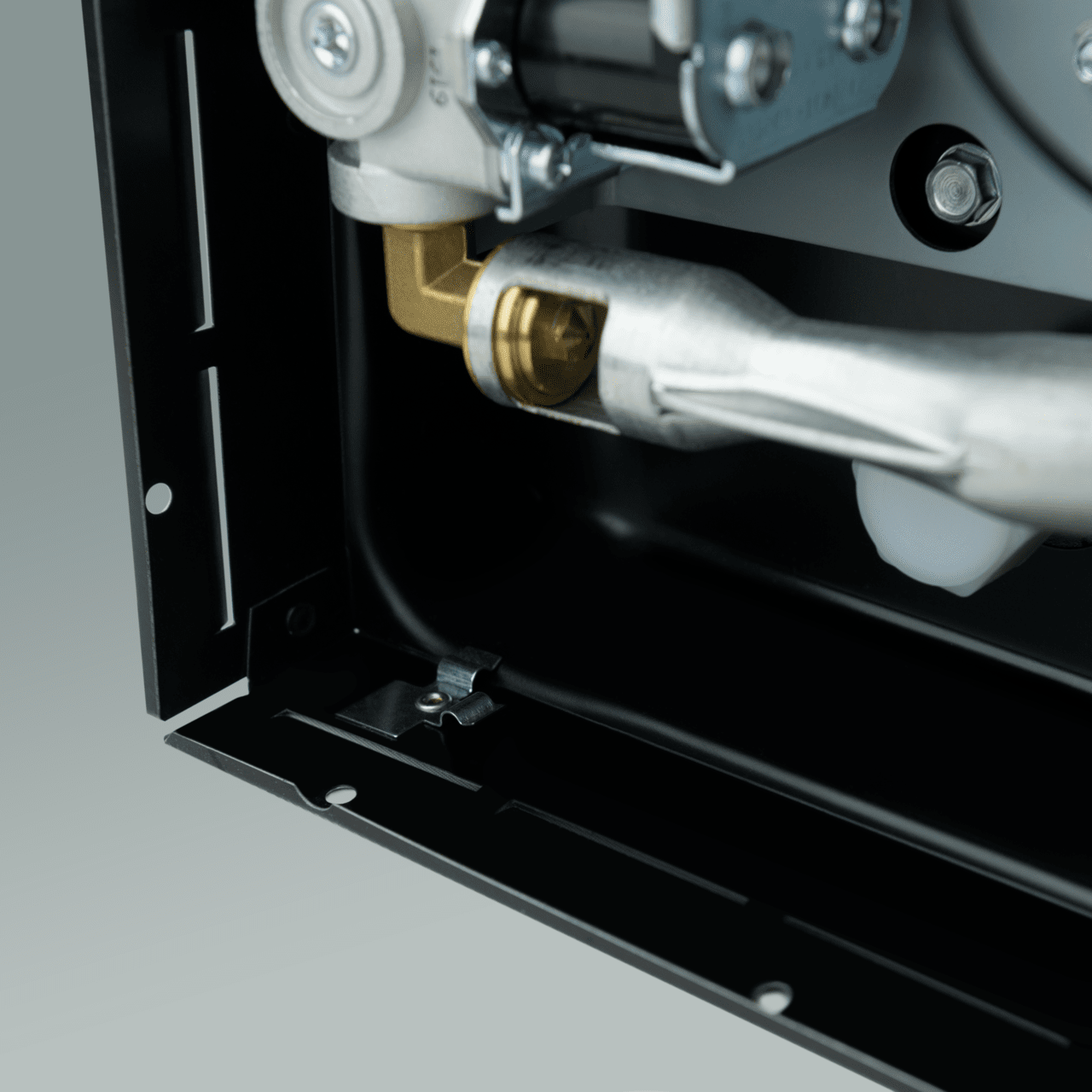

Extra Heat
Electric heating element provides additional input

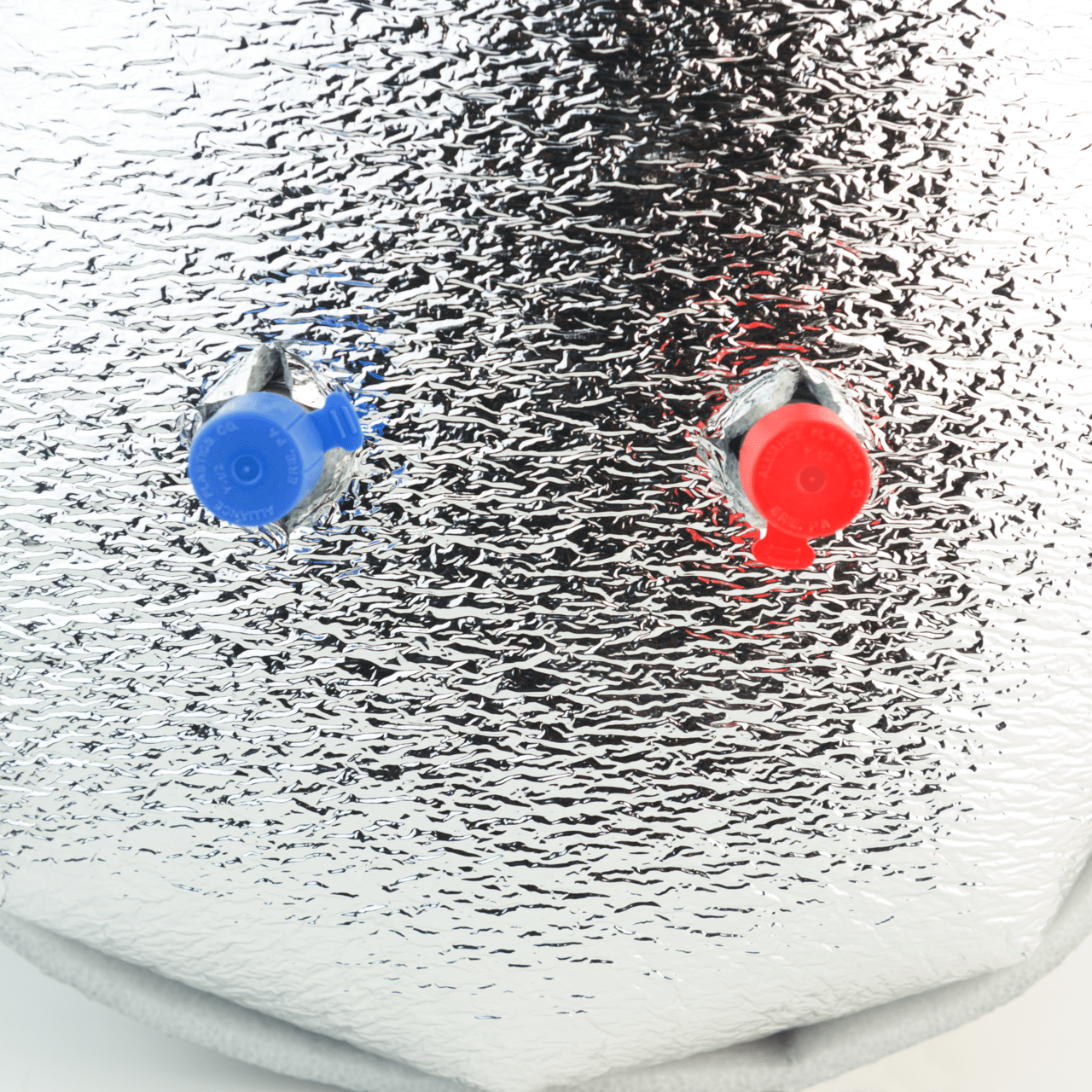

Advanced Technology
Enjoy 33 % more hot water thanks to the XT mixing valve
