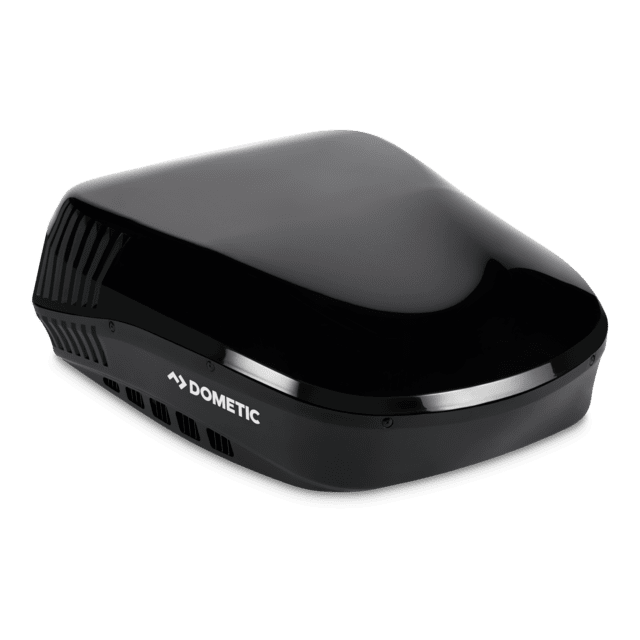

Dometic Blizzard NXT 15K with Heat Pump

Name: Dometic Blizzard NXT 15K with Heat Pump
Brand: Dometic
SKU: 9105305956
Availability: InStoreOnly

15,000 BTU Mid-Profile Rooftop Heat Pump, Ducted or Non-Ducted Application

Sold in our dealer networkArt nr: 9105305956

Find in store

Your Configurations

Cooling Capacity, [Btu/h]

15000

Cool Only or Heat Pump

Heat Pump

Color

Black

Thermostat Zones

Multizone

Industry-leading
Innovative Design
High Performer

Attractive aerodynamic design

Vibration isolation minimizes compressor noise

Efficient high-capacity air conditioning and heat pump models

Robust and durable construction

Inside ceiling assembly and/or thermostat sold separately

High-impact polypropylene injection-molded shroud and base pan

High capacity output fan & motor design with 350 CFM blower

SKU number

9105305956

Model

15K Btu Heatpump with Control Box

Model on label

H551816AXX1J0

Scope of delivery

1 Air conditioner, 1 Warranty card, 1 Registration card

Cool Only or Heat Pump

Heat Pump

Product Description

15,000 BTU - Rooftop Mid-Profile Air Conditioner with Heat Pump - Pre-installed Multi-Zone CCC II control board - Ducted application: return air grille and CCC II thermostat required - Black

Thermostat Zones

Multizone

Dimensions product depth, ["]

Dimensions product height, ["]

Dimensions product width, ["]

Net weight, [lbs]

Input voltage (AC), [V]

115

Input frequency, [Hz]

Cooling capacity (ISO 5151), [W]

4396.07

Cooling Capacity, [Btu/h]

15000

Heating capacity (ISO 5151), [W]

2626

Power consumption - Cooling mode (ISO 5151), [W]

1590

Power consumption - Heat pump (ISO 5151) - Display

1243

Color

Black

Certificates

CSA

EAN-13

0713814214203

Dimensions parcel depth, ["]

30.39

Dimensions parcel height, ["]

14.76

Dimensions parcel width, ["]

41.26

Parcel weight, [lbs]

96.39

HOW TO RUN MY RV AIR CONDITIONER ON THE CAMPSITE?

HOW TO RUN MY RV AC WITH A GENERATOR?

HOW DOES RV AIR CONDITIONING WORK?

WHAT RV AC DO I NEED IN WARM LOCATIONS?

Dometic Blizzard, NXT - Operating Manual AMER(en)

Operating Manual

Download

Dometic 3105007, 3105935, H540315, H540316 (Blizzard NXT) - Installation Instructions AMER(en)

Installation Manual

Download

Dometic H541815A, H541816A, H541916ZA, H541916A, H551816A, H551916A, 3314082, 3313192, CCC 2, LCD SZ - Installation Instructions AMER(en)

Installation and Operating Manual

Download

Dometic Blizzard NXT Roof Dometic 3314850, Blizzard NXT - Installation Manual AMER(en)op Unit used with 3314850.000 Air Distribution Box - Installation Manual AMER(en)

Installation Manual

Download

Dometic 3314850, CCC2, LCD SZ ADB - Installation Manual AMER(en)

Installation and Operating Manual

Download

Dometic Blizzard, 3316781.000 - Installation Manual AMER(en)

Installation Manual

Download

Dometic 541815A, 541816A - Installation Manual AMER(en)

Installation Manual

Download

WARNINGCancer or Reproductive Harm www.P65Warnings.ca.gov

Product Highlights

1 of 3

Industry-leading

Dometic Blizzard NXT has a powerful motor providing industry-leading airflow

2 of 3

Innovative Design

Sleek design with maximum output

3 of 3

High Performer

High capacity output fan

Blizzard NXT

The Blizzard NXT is sleek and aerodynamic, with a composite base pan and injection-molded shroud that are UV stable and rated for high impact. It was stringently tested for durability in the most extreme environmental conditions. Designed from the ground up, the Blizzard NXT has a powerful motor and fan, providing industry-leading 350 CFM airflow and advanced engineering that maximizes airflow around the evaporator coils for better and more efficient cooling performance. Expanded polypropylene (EPP foam) construction provides better insulation, reduces weight and unwanted condensation. Use of heavy sheet metal is minimized to improve performance and eliminate noise issues.

Reaching a pinnacle in cooling performance and efficiency

Air conditioning inside an RV has become a basic amenity that owners consider part of the standard-build landscape. Almost all RVs are equipped with at least one rooftop air conditioner. The Blizzard, features numerous improvements in exterior design, insulation and efficiency. Strategically placed foam insulation and an integrated blower housing minimizes heat transfer so cooler air is produced and maintained. Improvements to the evaporator, condenser, fan and blower wheel all helped with the overall positive experience. Noise and vibration were also big considerations in the revamp of this product, and improvements to the base pan get a big portion of the credit. Owners will appreciate the Blizzard’s cooling and power efficiency, and enjoy the indoor experience, even when outside temperatures soar.
