Discontinued

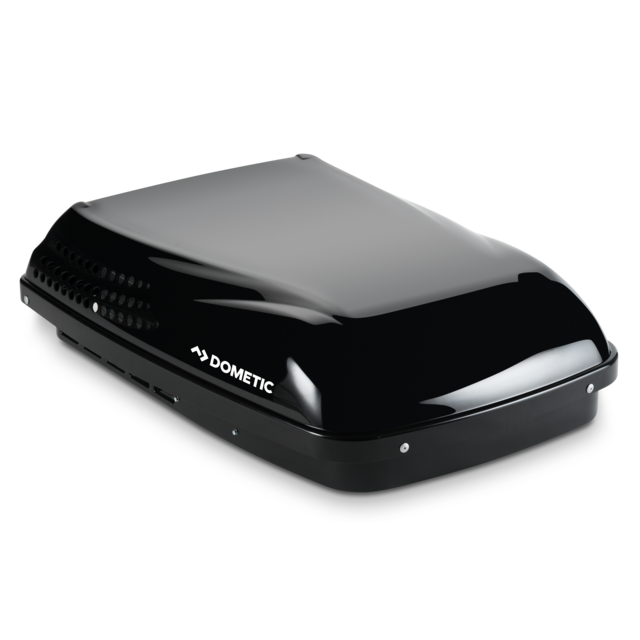

Dometic Penguin II - 13.5K BTU Single-Zone Air Conditioner - Black

13,500 BTU - Rooftop Low Profile Air Conditioner - Pre-installed Single Zone CT control board - Non-Ducted application: air distribution box and CT thermostat required - Ducted application: return air grille and CT thermostat required - black
Sold in our dealer networkArt nr: 9105306428

This low-profile rooftop air conditioner with sleek, futuristic styling offers premium comfort control and improved aerodynamics. A high-performance motor and fan deliver superb cooling performance.

  • CT thermostat compatible
  • Sleek Design
  • Premium Comfort
  • Lasting Strength
  • Eco-friendly
  • High Performance

High-performance motor and fan

Low profile – 11 1/4" / 29 cm high

Sleek, contemporary shroud improves aerodynamics, reduces wind resistance

Ducted or Non-ducted cooling

Requires inside ceiling assembly and control kit (available separately)

SKU number

9105306428

Model

13.5K Btu with Control Box

Model on label

641915AXX1J0

Scope of delivery

1 Air conditioner, 1 Warranty card

Cool Only or Heat Pump

Cool Only

Product Description

13,500 BTU - Rooftop Low Profile Air Conditioner - Pre-installed Single Zone CT control board - Non-Ducted application: air distribution box and CT thermostat required - Ducted application: return air grille and CT thermostat required - black

Thermostat Zones

Single

Dimensions product depth, ["]

29

Dimensions product height, ["]

11 1/4

Dimensions product width, ["]

40 1/2

Net weight, [lbs]

99.02

Input voltage (AC), [V]

115

Input frequency, [Hz]

60

Cooling capacity (ISO 5151), [W]

3956.46

Cooling Capacity, [Btu/h]

13500

Color

Black

Thermostat control

Electronic Thermostat

Certificates

CSA

EAN-13

0713814216498

Dimensions parcel depth, ["]

29.72

Dimensions parcel height, ["]

12.20

Dimensions parcel width, ["]

41.54

Parcel weight, [lbs]

107.60

HOW TO RUN MY RV AIR CONDITIONER ON THE CAMPSITE?
HOW TO RUN MY RV AC WITH A GENERATOR?
HOW DOES RV AIR CONDITIONING WORK?
WHAT RV AC DO I NEED IN WARM LOCATIONS?

Dometic 3308046, 3308047 - Installation and Operating Manual AMER(en)

Installation and Operating Manual

Download

Dometic 641415, 641416, 641515, 641516, 641715, 641716, 641815, 641816, 641915, 641916, 641432, 64135, 641535, 641732, 641735, 641835, 641932, 641935, 651515, 651516, 651815, 651816, 651915, 651916 - Installation Manual AMER(en)

Installation and Operating Manual

Download

Dometic 3314850, CCC2, LCD SZ ADB - Installation Manual AMER(en)

Installation and Operating Manual

Download

Product Highlights

CT thermostat compatible
1 of 6

CT thermostat compatible

Effortless, fully automatic comfort control

Sleek Design
2 of 6

Sleek Design

Improved aerodynamics reduces wind resistance while underway

Premium Comfort
3 of 6

Premium Comfort

High-perfomance motor and fan for maximum cooling

Lasting Strength
4 of 6

Lasting Strength

Rib-reinforced base pan for strength and durability

Eco-friendly
5 of 6

Eco-friendly

R410A refrigerant is environmentally friendly and releases heat more efficiently

High Performance
6 of 6

High Performance

Foam seals prevent unwanted heat transfer and loss of performance

Low-profile aerodynamics

Low-profile aerodynamics

The leading low-profile RV air conditioner, the Penguin II Rooftop Air Conditioner is a powerful cooler. With its ultra-low profile, this streamlined rooftop unit is aerodynamically designed to reduce drag when on the move. It also looks fantastic! The high-performance motor and fan deliver powerful cooling performance using a more eco-friendly R410A refrigerant. Despite its compact and lightweight design, features such as the robust rib-reinforced base pan ensure that the Penguin II can handle tough environments for a longer service life.

Assisting NASA with air conditioning expertise

Assisting NASA with air conditioning expertise

In 2011, NASA was on the lookout for an air conditioning system to install in their lunar electric rover. They decided they needed expert help and consulted numerous suppliers. Finally, after a rigorous selection process, the space agency chose Dometic. “We’ve had a lot of firsts over the years, but this custom job presented special challenges for our engineers,” said a spokesperson for Dometic. After extensive trials in Arizona, where the system had to keep scientists and their equipment cool and dry, our technology is now ready for extra-terrestrial duty.
