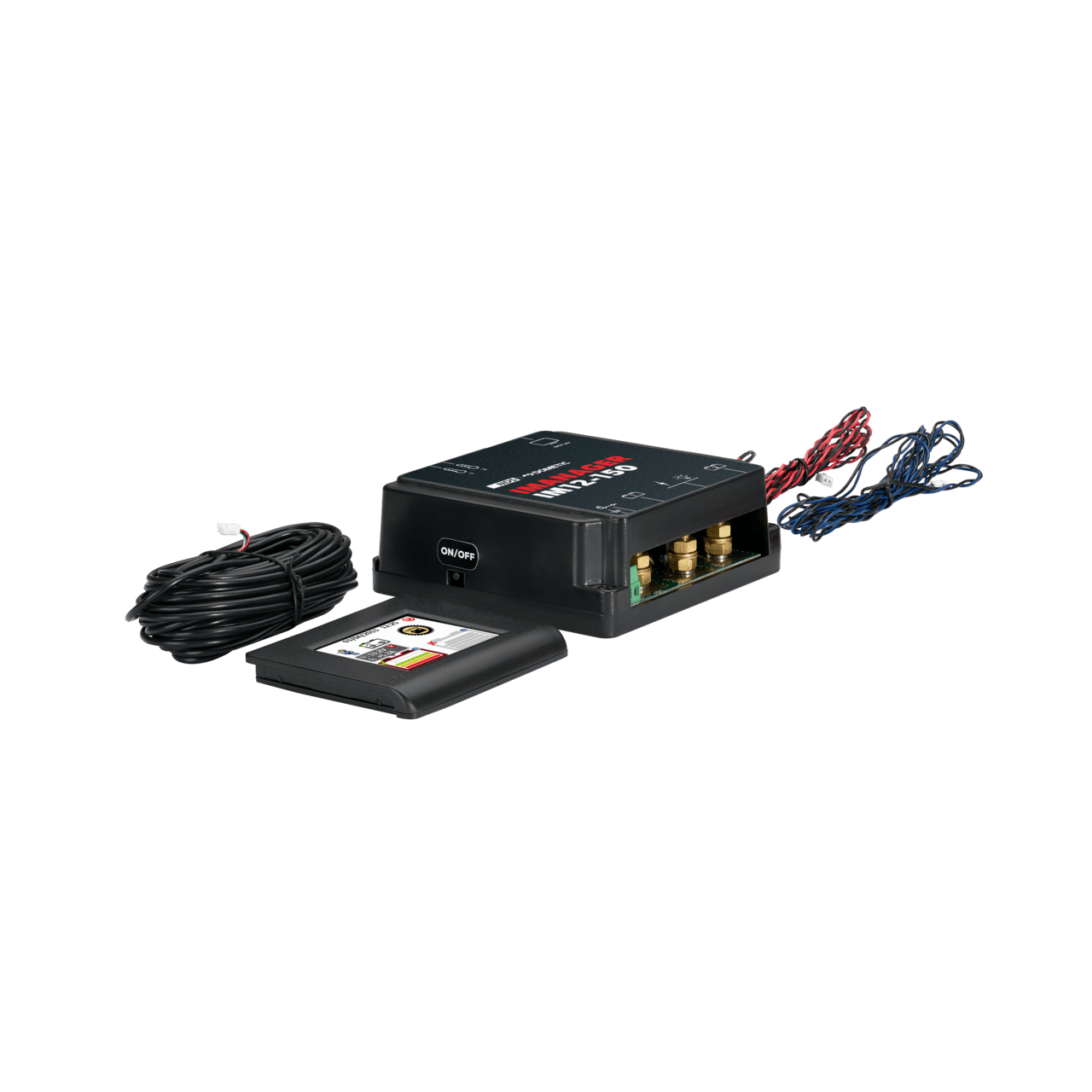

Dometic NDS IMANAGER IM12-150W

Multi-battery manager, wireless model including touch-screen display
Art nr: 9620008179

Do you want to safely install several leisure batteries with different technology (AGM, gel, wet) and different capacity? Then you need a smart device to manage the system. Our IMANAGER is able to handle up to three batteries simultaneously or separately. It constantly checks the battery voltages, monitors the charging and discharging currents, and automatically selects the battery to optimize the overall performance.

Automatic or manual management of two leisure batteries, even of different technology and amperage

Displays battery charge status as well as charging and discharging voltage and amperes

Full color touch-screen display included

Charges the starter battery when the leisure batteries are 100% charged

Automatic battery cut-off below 11 V or manual battery cut-off via touch-screen display

Wireless connection of Black Box and Display (wired model also available)

Displays info and advice on battery management and maintenance

SKU number

9620008179

Model

Imanager150

Model on label

n/a

Scope of delivery

Control unit,Display,Power cable,Temperature sensor, Mounting material,installation and operating manual

Product Description

Multi-battery manager, wireless model including touch-screen display

Dimensions product depth, [mm]

125

Dimensions product height, [mm]

57.20

Dimensions product width, [mm]

123

Net weight, [kg]

0.47

Operating temperature min, [°C]

-10

Operating temperature max, [°C]

65

Color

Black

Certificates

ECE R10UKCACE

EAN-13

8058093763021

Dimensions parcel depth, [mm]

179

Dimensions parcel height, [mm]

80

Dimensions parcel width, [mm]

136

Parcel weight, [kg]

0.55

NDS Dometic IM12-150, IM12-150W - Short Operating Manual EMEA24

Short Operating Manual

Download

NDS Dometic IM12-150, IM12-150W - Installation and Operating Manual EMEA24

Installation and Operating Manual

Download
Clever Lead/Acid battery manager

Clever Lead/Acid battery manager

Use different brand, type and capacity of Lead/acid batteries, iManage will manage them for you avoiding parallel. iManager is equipped with some important safety features to prevents loss of efficiency or irreversible damage to your batteries. It is activated in three different situation. First, when the voltage of one or both batteries falls below the critical limit of 10.5 V. Second, when the voltage of one or both batteries drops below 11 V for more than 15 minutes. Third, when the temperature on one or both batteries exceeds 70°C.

Why avoid parallel battery operation

Why avoid parallel battery operation

Parallel operation between several batteries, apart from not being the most efficient, requires the purchase of batteries that are as similar as possible in terms of make, model and power. The two batteries will work together as one, and deficits in one will affect the other, affecting its performance and longevity. When the parallel system fails, or loses efficiency, both batteries must be replaced.
