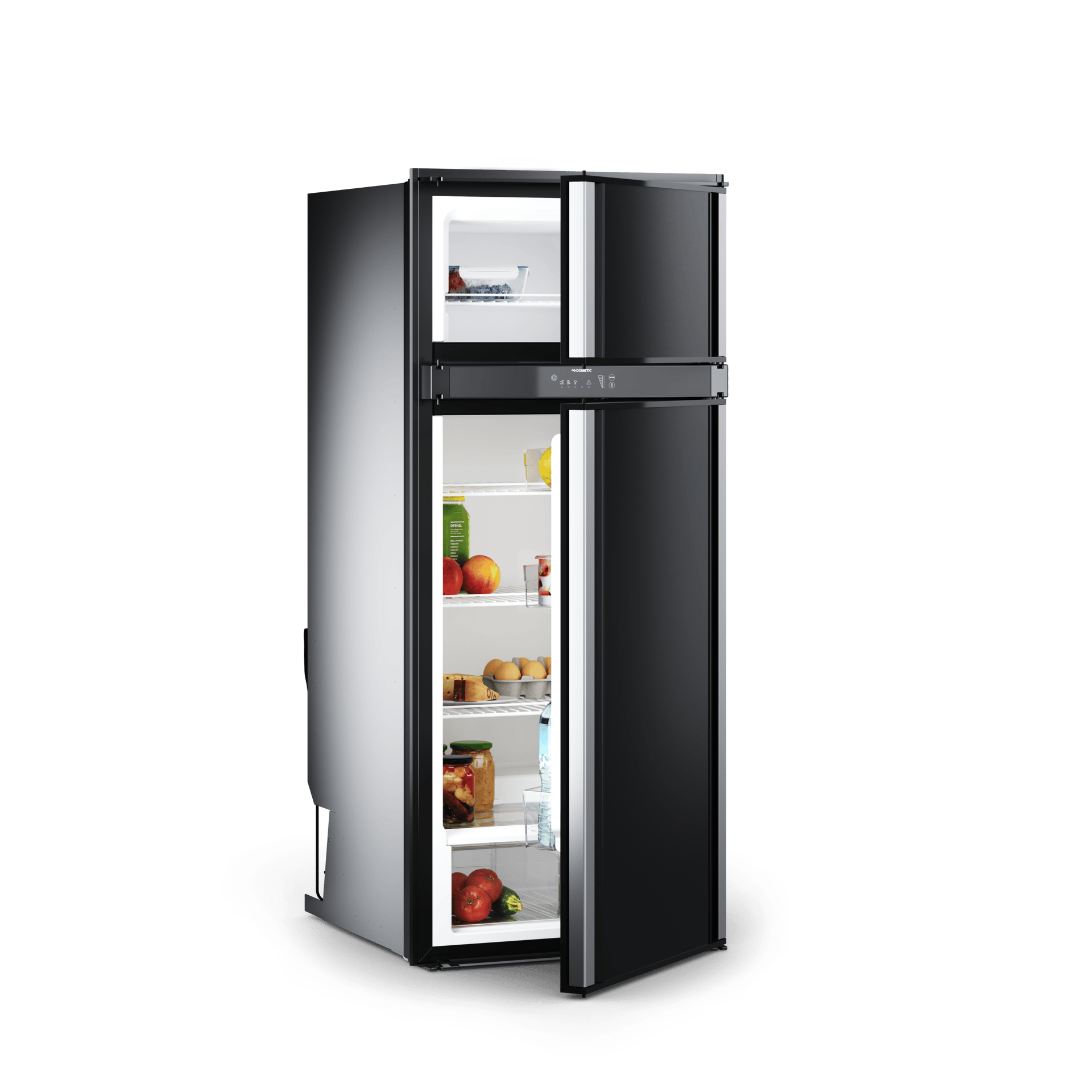

Dometic RM 8505
This 106 l fridge is both flexible and easy to use. Remove the freezer compartment and re-arrange shelves to have it just the way you need it. Also perfectly silent.
The 9 l freezer has a patented design for easy removal
Silent operation – no interruption from your fridge
Fingertip door opening and and user friendly control panel
106 l capacity without freezer
Flexible shelf system
Secure door locking with vent option
Three-way power supply gives you extra freedom: AC (230 V), DC (12 V) and gas.
SKU number
9105705346
Model
RM8505
Model on label
RM 8505
SKU replaced by
9500001567
Scope of delivery
1 fridge,manual + CD
Product Description
Refrigerator
Refrigeration technology
Absorption
Dimensions product depth, [mm]
568
Dimensions product height, [mm]
821
Dimensions product width, [mm]
523
Net weight, [kg]
28
Input voltage (AC), [V]
230-240
Input voltage (DC), [V]
12
Rated input current (AC), [A]
0.6
Rated input current (DC), [A]
10,83
Rated input power (AC), [W]
135
Rated input power (DC), [W]
130
Input frequency, [Hz]
50/60
Hermetically Sealed
True
GWP
0
CO2 equivalent, [t]
0
Refrigerant, type
R717
Refrigerant amount, [g]
143
Noise (EN60704-1 & 60704-2-14), [dB(A)]
0
Energy consumption (DC@5/25°C), [kWh/24h]
2.4
Climate class (EN 62552)
SN
Gas consumption [g/24h]
270
Gas pressure (DIN732), [mbar]
30
Color
Black Grey
Thermostat control
AES
Hinge type
Right hinged
Interior light
Yes, LED
Certificates
CEECE R10
EAN-13
4014742216151
Dimensions parcel depth, [mm]
623
Dimensions parcel height, [mm]
847
Dimensions parcel width, [mm]
585
Parcel weight, [kg]
34
