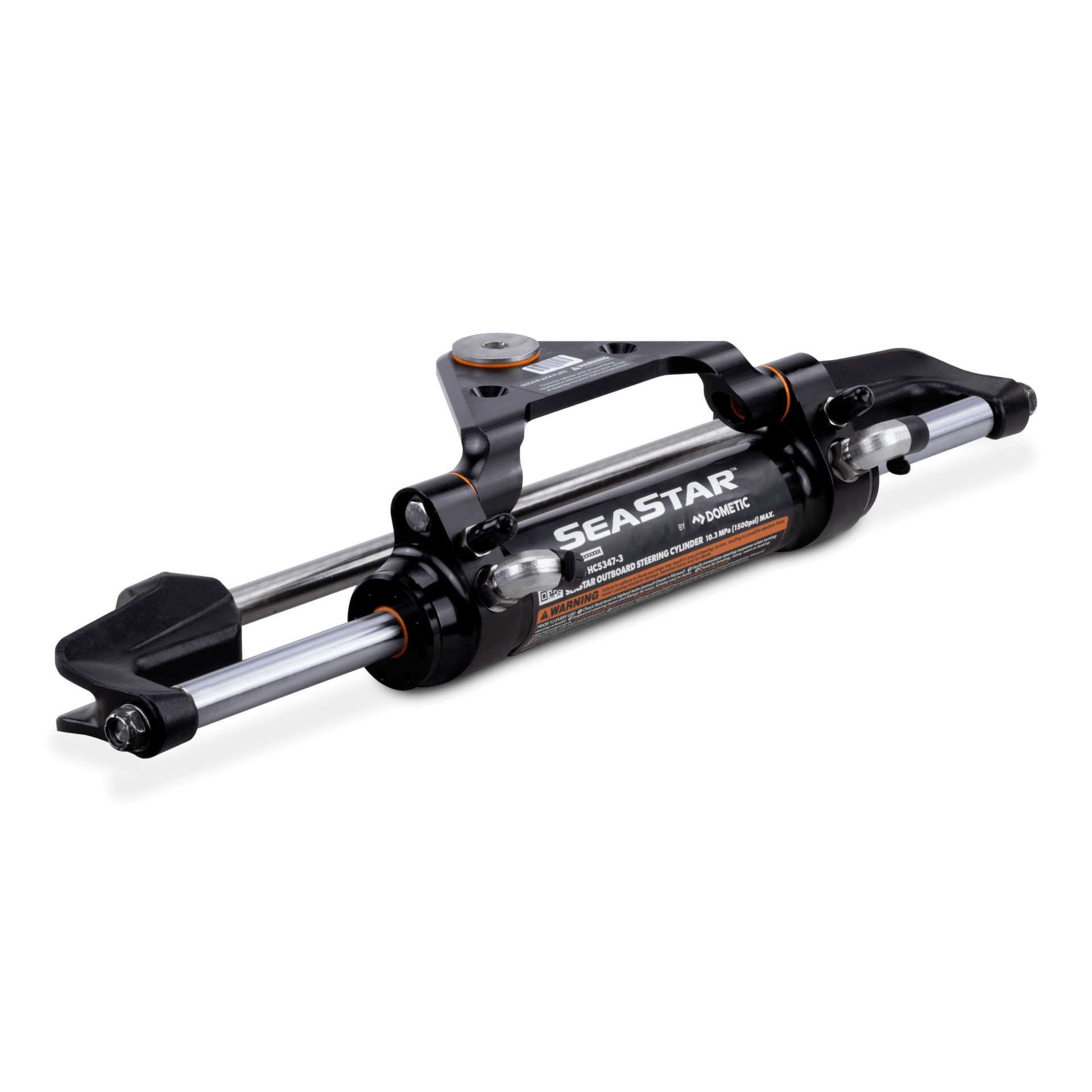

Dometic SeaStar Pro Outboard Cylinder
Outboard Cylinder Front Mount
Available at selected dealersArt nr: 9130001032 (HC6345-3)
The SeaStar Pro Front Mount Outboard Cylinders have keyed support brackets to prevent racking of the cylinder which gives it a more solid feel and more robust bushings. SeaStar PRO Outboard cylinders are suited for all those critical high speed, single powered outboard boats, like Bass, Flats, combo Race/Ski and other performance orientated boats capable of speeds in excess of 65mph.
SKU number
9130001032
Model
SeaStar Outboard Cylinders
Legacy Factory Item Number
HC6345-3
Product Description
Outboard Cylinder Front Mount
Dimensions product depth, ["]
4 7/8
Dimensions product width, ["]
21 3/4
Net weight, [lbs]
9.50
Fluid volume, [oz]
8.34
Actuation Stroke Length, ["]
8
Horse Power Rating, [hp]
350
Maximum Pressure rating, [psi]
1500
Colour
Black
Allowable Fluid Type
SeaStar steering fluid
Port Type
ORB
Shaft Diameter, ["]
0.75
Dometic Seastar Front Mount Cylinder - Installation and User Manual en-US
Installation and Operating Manual
